Product Details

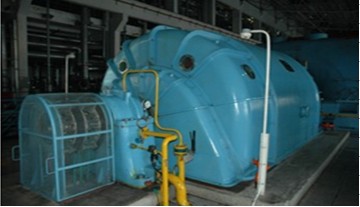

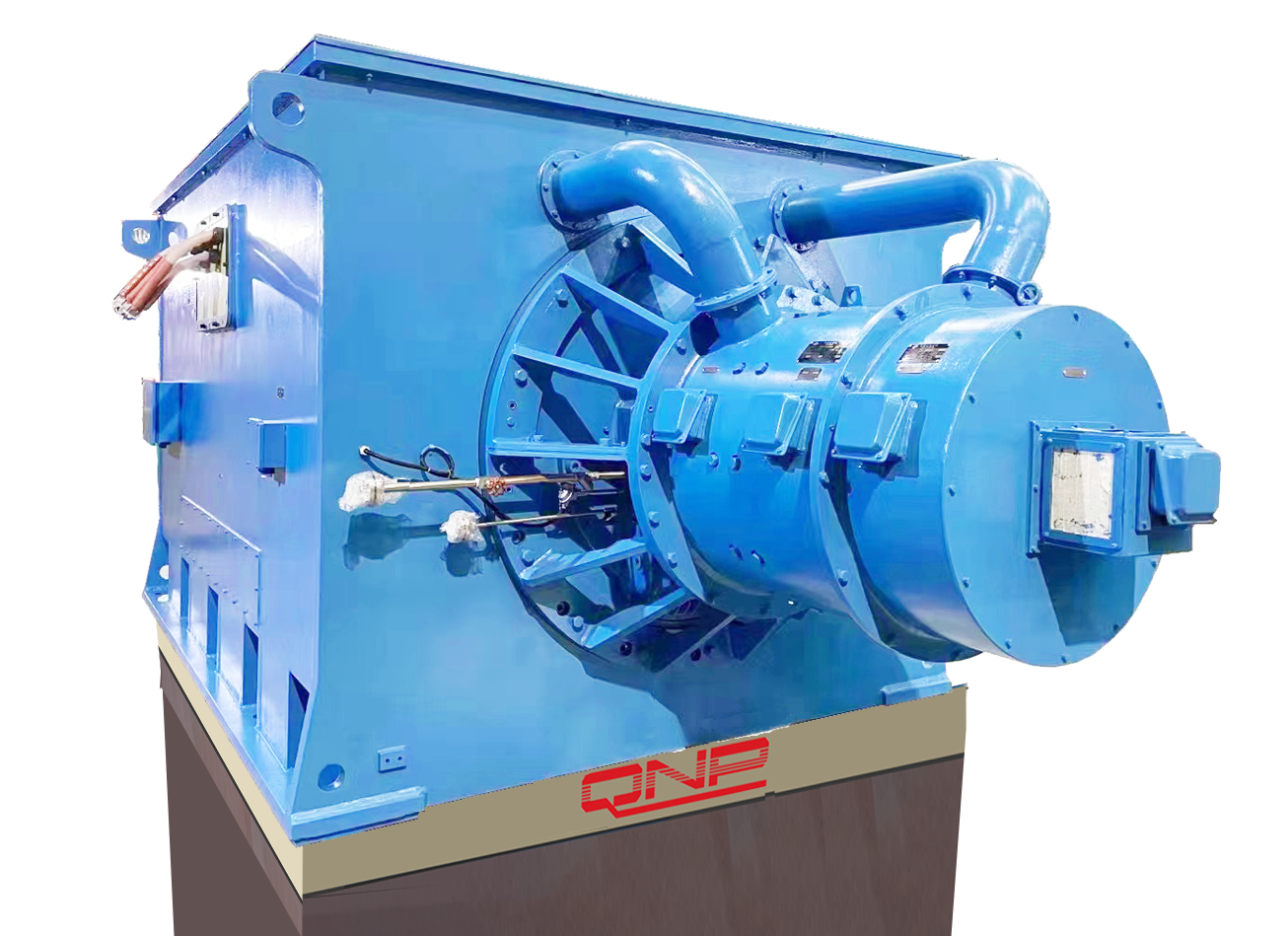

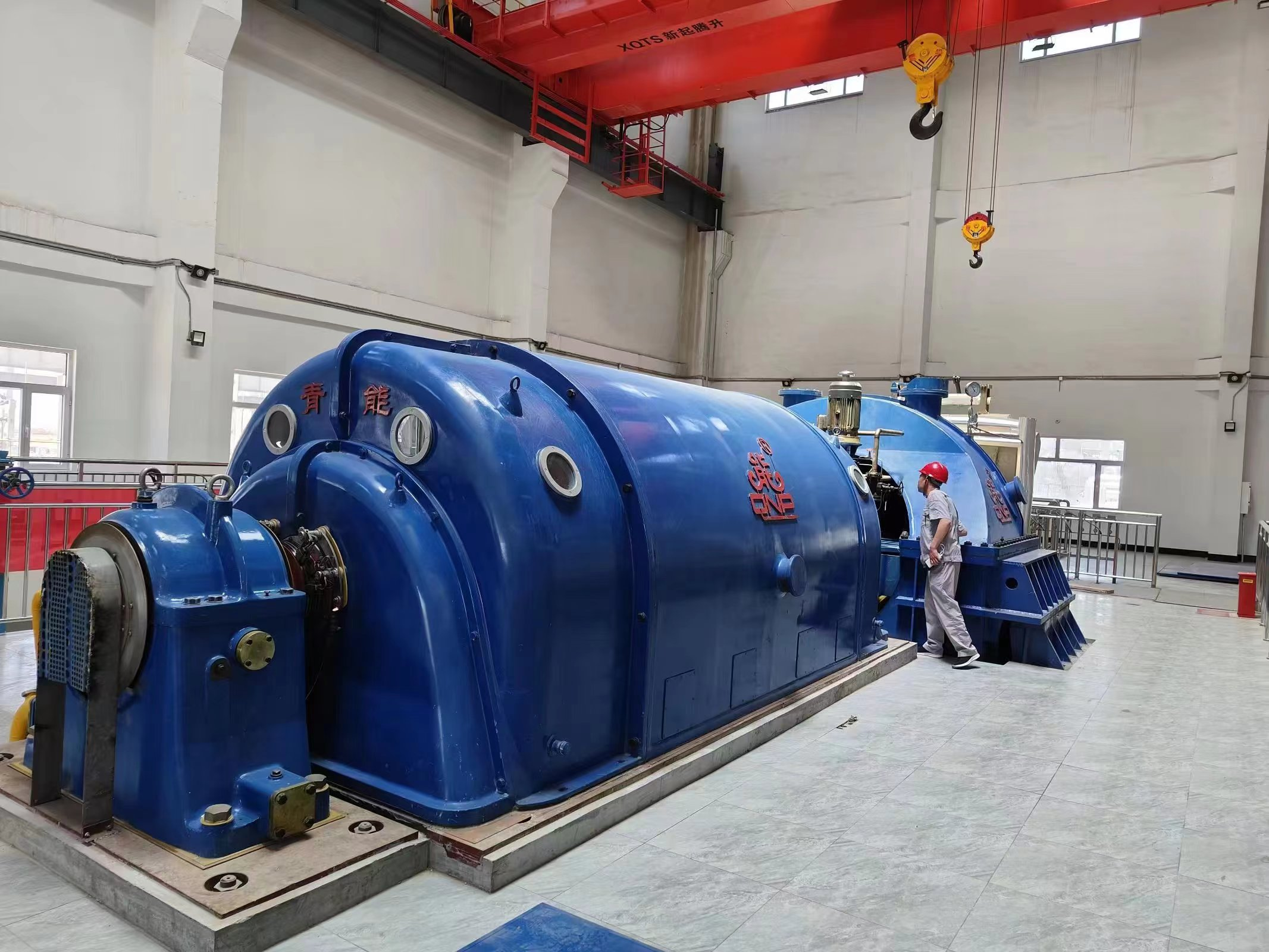

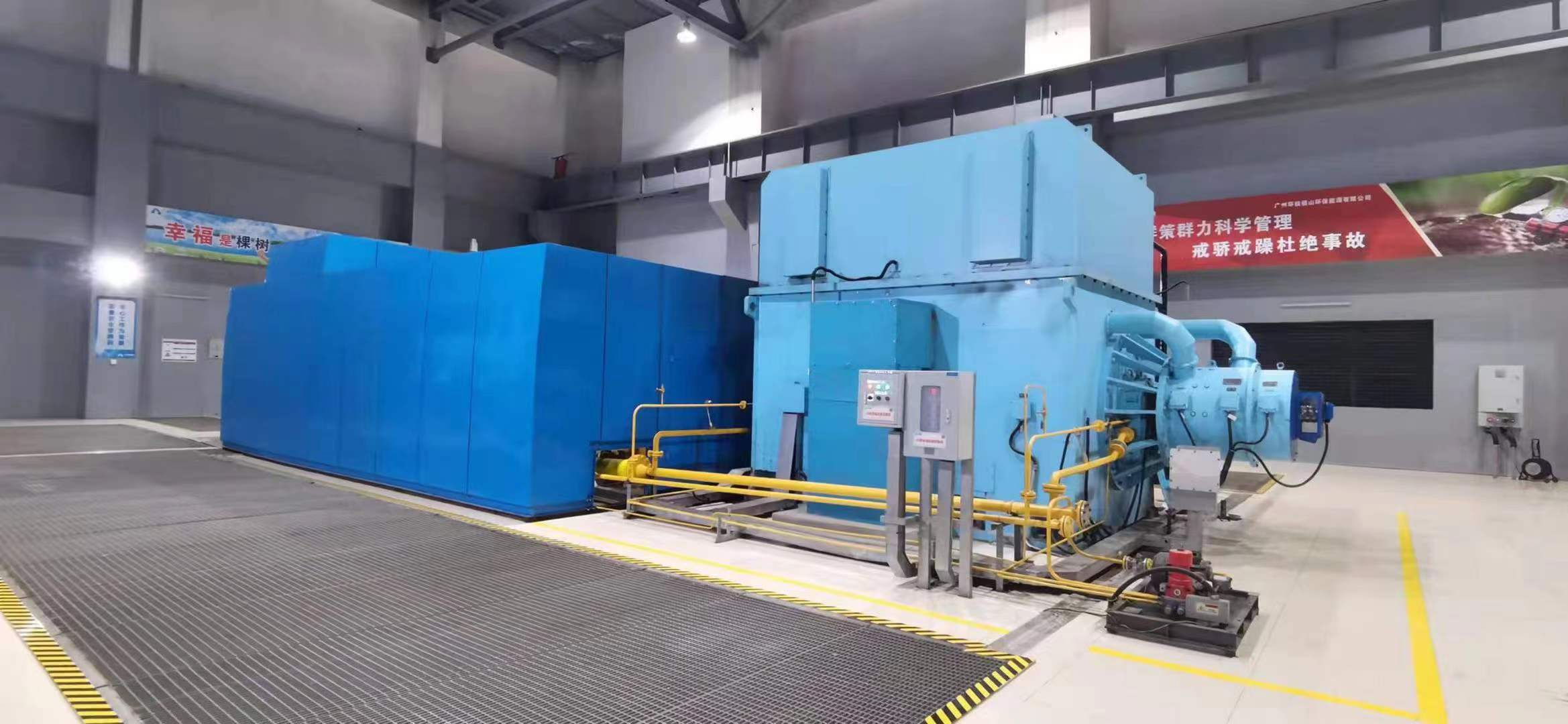

The generators produced by SINO-QNP are three-phase two-pole or four-pole turbine type hidden-pole synchronous generators, which adopt open or closed circulation ventilation system, end cover bearing or separated seat bearing, insulation grade being F.

Cooling methods: air cooling, air internal cooling, double water internal cooling, water- hydrogen hydrogen cooling, etc.

The excitation mode adopts machine-side self-shunt static excitation or brushless excitation, which can provide users with two-machine or three-machine rotary rectifier excitation.

After strict electrical inspection before leaving the factory, the performance indexes of the generator meet IEC60034-3 and Chinese GB/T7064 standards, and have the advantages of superior parameters, advanced technology, reasonable structure, good performance and reliable operation. The power ranges from 1.5 MW to 400MW, forming different product series such as traditional classic, high-efficiency box type and flat quick packaged types etc. SINO-QNP can provide different capacity grade products to all kinds of users, and can provide generator products meeting special structural requirements for gas, steam combined cycle and efficient clean power generation mode.
